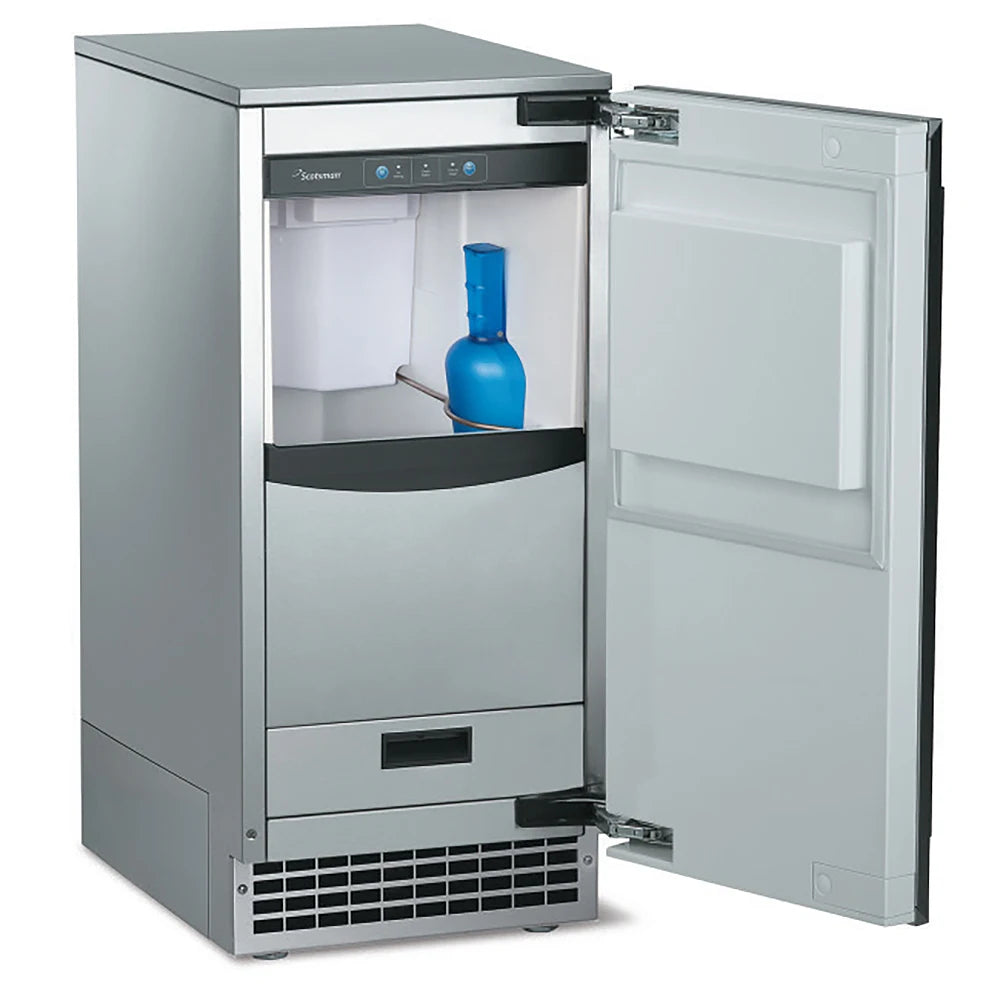

Scotsman SCN60GA-1SS 14 7/8"W Nugget Undercounter Ice Machine - 85 lbs/day, Air Cooled, Gravity Drain, 115v

Manufacturer      Scotsman

24 Hr. Production (lb)  85

Bin Capacity (lb) 26

Compressor Type   Air Cooled

Depth (in)  22.75

Design      Standard Height

Drain Type  Gravity

Front Style Stainless Door

Height (in) 33.38

Hertz 60

Ice Type    Nugget

NEMA  5-15P

Phase 1

Product     Undercounter Ice Machines

Product Type      Ice Makers & Bins

Rating      Best

Refrigerant R134a

Series      Brilliance™

Special Features  Alert System

Special Features  Antimicrobial

Special Features  Outdoor Rated

Suggested Use     Commercial

Suggested Use     Home/Office

Suggested Use     Outdoor

Voltage     115

Warranty    Commercial & Residential: 2-year Parts & Labor; 5-year Compressor Parts

Width (in)  14.88

Weight      133.00

To extend service life in outdoor environments, the Scotsman SCN60GA-1SS Brilliance™ ice maker's cabinet and front are constructed of rugged stainless steel. This material avoids rusting, scratching, and corroding and can be wiped clean as needed. For optimal sanitation, key machine components are treated with a silver-based, AgION® agent that inhibits microbial growth. This unit is equipped with a control panel that provides updates on water and power status in addition to cleaning reminders.

The Scotsman SCN60GA-1SS undercounter ice maker features a self-closing door to preserve cold air and a 26-pound-capacity bin that's illuminated for quick and easy ice retrieval. It produces chewable nugget ice at a maximum rate of 85 pounds per day; this ice type is ideal for serving in iced tea, lemonade, and soft drinks. This air-cooled unit uses R-134A refrigerant and is designed with a gravity drain through which condensate flows, meaning it requires installation near a floor drain that can accept runoff. Overall, this machine measures 147/8 inches wide by 223⁄4 inches deep by 343/8 inches high.

Product Details

Part of the Brilliance series

85-lb. daily ice production limit when air is 70 degrees F and water is 50 degrees F (60-lb. daily production when air is 90 degrees F and water is 70 degrees F)

26-lb. built-in storage capacity

Undercounter configuration

Produces soft, chewable nugget ice

Suitable for outdoor use

Control panel provides powers status, cleaning reminders, and no-water alerts

Cabinet and front are resilient stainless steel

Door is self-closing

Illuminated bin

Key machine components protected with AgION antimicrobial

Gravity drain

Air cooled

UR-134A refrigerant

Required incoming water pressure: 20-80 PSI

Required ambient water temperature: 40-100 degrees F

Required ambient air temperature: 50-100 degrees F

Dimensions & Utilities

147/8 in. W x 223⁄4 in. D x 343/8 in. H

5 A

115 V/60 Hz/1 ph

Requires 5/8-in. drain line
